AutoCAD Options-Files Tab

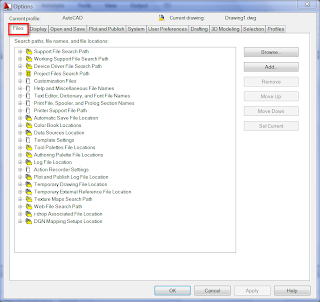

I find that few people really know the meaning or importance of the Files tab in the Options dialog box in AutoCAD products. This tab is nothing more than a list of items that point to locations. That's it. Nothing more.

The Support Files Search Path, is a list of locations that AutoCAD uses to look for files related to support. What I mean by support is that when AutoCAD starts up or needs to access a file such as a plot style, template, or CUI file for example this is where it looks.

The Support Files Search Path is searched by AutoCAD in the order listed. By default it lists the out of the box support file paths, but you can add your own.

More importantly, you can point to where your templates are stored and define QNEW for your template to use. You can point to where your plot styles are under Printer Support File Path.

I'll go over each of these areas in the next posts.

This is why it's important to first have a location set, preferably on your server, to store your files. If you don't already have this set in place, take this time to set up a folder with subdirectories now.



Set up a few folders to get you started. You may want other folders for standard blocks.

The folder for Customization would be a location to store .cui files or if you have lisp files or other types of customization.

The Plot Styles folder would contain your own plot styles, but you could also copy any out of the box plot styles such as the monochrome plot style here. If you receive plot styles from outside sources that send you drawings and include their plot styles, you would place their plot styles in this directory as well.

Profiles folder would contain the company profile as well as a secure network location for users to export their profile once they have AutoCAD set up the way they want it.

Templates (.dwt files) would go under the Template folder and all users would point to this location.

It's a good idea to store a .dwg file of your titleblock separately so you can easily make changes even if you have your titleblock in your template file.

And of course every situation does well with a Misc. folder for anything that doesn't easily fit in other places. The .cus file for your custom dictionary is a good example of this.
