Creating Schedule Tags With Multiple Property Sets





If you want to create a schedule tag and use the tag wizard available in AutoCAD Architecture or AutoCAD MEP 2009, you can't do it using Mtext. You can do it using plain single-line text.

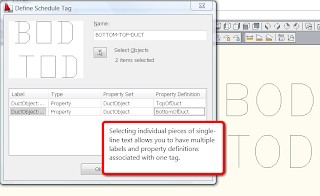

Using single-line text allows you to choose several lines to associate multiple property sets.



Here's an example of one reason why you might use two property sets for top of duct and bottom of duct on one tag.
